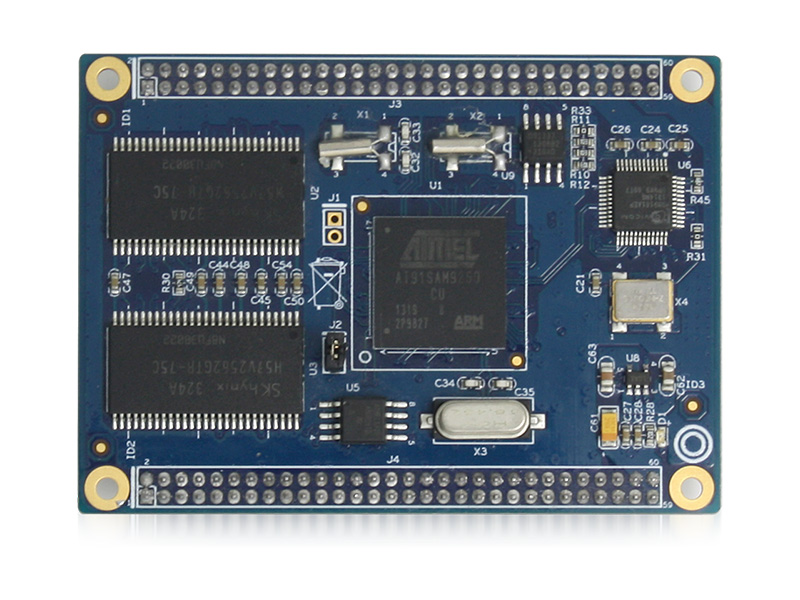

Atmel 9260 ARM SOM(EZ9260-P)
- ATMEL AT91SAM9260 CPU, ARM926EJ-S Core;
- With 8KB instructions, data buffer, 200MHz, 210MIPS operation performance;
- 3.3V NAND FLASH, batch use, cost less;
- Up to 7-wire serial ports, 3-wire USB, SPI, counter, timer, etc;
- CSI image sensor interface, convenient to develop in video industry application;
- Could connect digital LCD(256 kinds of colors) through bus;
- 3.3V Dc power supply, power consumption less than 1W;
- Support Windows CE 5.0Linux2.6.
CPU Processor
• ATMEL AT91SAM9260, ARM926EJ-S core
• 200MHz
SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM
FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)
• Could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2-piece 2*30PIN, 2.0 spacing connectors
Other Resources
• DM9161 net chip, support 10M/100M self-adaptive Ethernet with MII mode, more compatible than RMII
• DS1337 clock chip, 32.768RTC clock source
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 3.3V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30
• WindowsCE 5.0
Linux Software Features
| Item | Content | Function |
|---|---|---|
| Cross-compiler | arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2 | arm-linux-gcc 4.2 |
| U-boot | Version: U-boot 1.3.4 | Provided with bootstrap, U-boot source code |
| Support writing into DataFlash or NandFlash start | ||
| Support SAM-BA software with USB writing and TFTP network update | ||
| Linux Kernel | Version: 2.6.30 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| EBI driver | Provided with test program and source code | |
| I2C driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| ADC driver | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| Counter(TC) | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| USB driver | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity storage SD card | |
| File System | Jffs2 file system | Provided with source code |
| PC Development Environment | Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual | Convenient for user to next develop |
WindowsCE 5.0 Software Features
| Item | Content | Function |
|---|---|---|
| Bootloader | support writing into DataFlash or NandFlash start | Optional |
| BSP Source Code | ||
| BSP(Open Source) | RTC driver,save and restore system time after power off | Provided with test program and source code |
| Registry saving, support saving registry information when electricity adjusted | Convenient for user to debug | |
| SD card driver | Biggest support 4G | |
| Audio driver, support audio input/output and MIC input | Provided with test program and source code | |
| Nic driver, 10/100M self-adaptive, can be expanded gigabit nic | Provided with test program and source code | |
| IO interrupt | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| 232, 485 serial driver test | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| PC Development Environment | Provided with supporting EVC development tools, Wince 5.0 plug-in | Convenient for user to next develop |
QY-9263P Core Module Software & Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer（another pay）
• Customized development of back plane, according to customers' requirements(another pay)
Order Information:
| Item | QY-9263P | ||
|---|---|---|---|
| DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main component's datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Bootstarp, u-boot, kernal, image file of file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Include bootstrap, u-boot, kernel, file system and QT source code | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Firstboot, Eboot, NK image file | ||
| Test source code | Test routines and source codes of all interfaces | ||
| BSP package | Related BSP board-level supporting package | ||
| SDK | Related SDK | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Back plane's schematic in PDF format | ||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | +91 44 4317 1900 / +91 86800 20964 | ||
