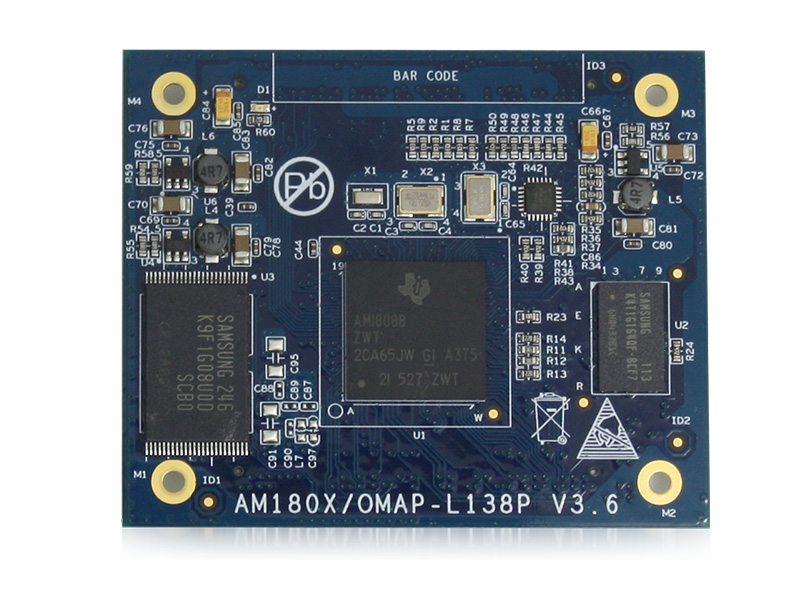

TI AM1808 ARM SOM(QY-1808P)
- TI AM1808 CPU, ARM926EJ-S core processor, 456MHz;
- 128M/256M NandFlash (K9F1G08/K9F2G08 support, support 1G NandFlash);
- 3-wire RS232/485 serial ports, 2-wire USB etc;
- 2 PRU integrated module, can be extended to 8 serial ports;
- 1.5Gbps/3Gbps SATA interface;
- EMI bus interface can be extended SDRAM;
- 5V Dc power supply, low power consumption, <2W ;
- Support Windows CE 6.0Linux2.6.
CPU Processor
• TI AM1808 CPU, ARM926EJ-S Core
• 456MHz
SDRAM Memory
• 128MB SDRAM
FLASH Storage
• On-board 128M*8bits NandFlash(could change a large capacity or industrial chip according to customer's requirement)
Interfaces
• 2 pieces 2*50PIN B2B connectors: simple, convenient, high reliability
Other Onboard Resources
• On-board LAN8720 network chip, support 10M/100M Ethernet with MII mode
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <2W
Support OS
• Linux2.6.33
• WindowsCE 6.0
Linux Software Features
| Item | Content | Function |
|---|---|---|
| Cross-compiler | arm-arago-linux-gnueabi.tar.gz | arm-arago-linux-gnueabi-gcc 4.5 |
| U-boot | U-boot | Provided with bootstrap, U-boot source code |
| Support writing into NandFlash start | ||
| Support SAM-BA software with usb writing and TFTP network update | ||
| Linux Kernel | Version: 2.6.33 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| EBI driver | Provided with test program and source code | |
| I2C driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| ADC driver | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity storage SD card | |
| File System | Jffs2 file system | Provided with source code |
| PC Development Environment | Provided with ubuntu 12.04 Linux OS, VMware 9.0.2 virtual machine and supporting development environment build manual | Convenient for user to next develop |
WindowsCE 6.0 Software Features
| Item | Content | Function |
|---|---|---|
| Bootloader | Support writing into NandFlash start | Provided with test program and source code |
| BSP(Open Souce) | RTC driver,save and restore system time after power off | Provided with test program and source code |
| Registry saving, support saving registry information when electricity adjusted | Convenient for user to debug | |
| SD card driver | Largest capacity support 4G | |
| Audio driver, support audio input/output and MIC input | Provided with test program and source code | |
| Nic driver, 10/100M self-adaptive, can be expanded gigabit nic | Provided with test program and source code | |
| IO interruption | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| 232, 485 serial driver test | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Provided with test program and source code | |
| PC Development Environment | Provided with supporting EVC development tools, Wince 6.0 plug-in | Convenient for user to next develop |
QY-1808P Core Module Software & Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer（another pay）
• Customized development of back plane, according to customers' requirements(another pay)
Order Information:
| Item | QY-1808P | ||
|---|---|---|---|
| DVD resources | Linux | Compilers | Cross-compiler arm-arago-linux-gnueabi |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main component's datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Bootloader, kernal, image file of file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Including bootloader, kernel, file system, QT source code and madplay | ||
| Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Firstboot, Eboot, NK image file | ||
| Test source code | Test routines and source codes of all interfaces | ||
| BSP package | Related BSP board-level supporting package | ||
| SDK | Related SDK | ||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | +91 44 4317 1900 / +91 86800 20964 | ||
