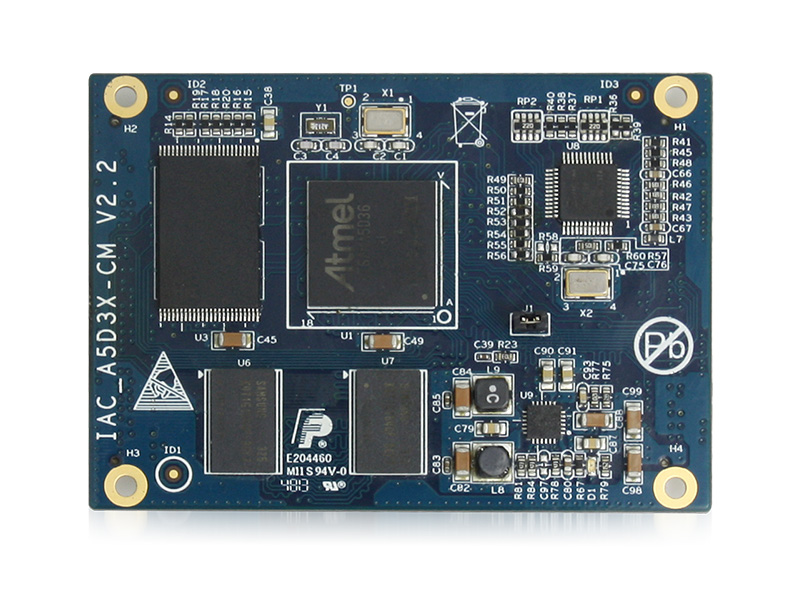

Atmel A5D3X ARM SOM(IAC-A5D3X-CM)
- Atmel SAMA5D3 CPU, 536MHz ARM Cortex-A5 core ARM v7-A ISC
- With floating point arithmetic unit,64-bit inside Bus architecture and 32-bit wide DDR controller,operation frequency up to 166MHz;
- Can choose different type of processor to get different function combination, optimize costs, and all models PIN compatibility;
- Can expand 7-ch port, 2-ch CAN bus, 2-ch Ethernet interface;
- Whole board runs with high-speed, and power consumption is lower than 1 with functions of low power consumption mode,which is ideal for battery-powered applications;
- Abundant external interfaces, can replace Atmel ARM9 series products, and upgrade the product perfect;
- Support linux 3.6 and android 4.0.
CPU Processor
• ATMEL SAMA5D3X，Cortex A5 core
• 536MHz
DDR RAM Memory
• 256MB DDR2 RAM，333MHz,32bit data bus
FLASH Storage
• On-board 2M DataFlash (45DB161D)
• On-board 256M*8bits NandFlash (29F2G08ABAEA)could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2*100 pin 0.8mm spacing B to B connector
Other Onboard Resources
• DM9162 net chip，support 10M/100M Ethernet with MII mode,more compatible than RMII mode
• Power management, support 1.8V,3.3V,5.0V voltage input
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <2W
Support OS
• Linux 3.6.9 + QT4
• Android 4
Linux Software Features
| Item | Content | Function |
|---|---|---|
| Cross-compiler | gcc-linaro-arm-linux-gnueabihf-4.7-2012.12-20121214_linux.tar.bz2 | arm-linux-gcc |
| U-boot | u-boot-at91-2012.10_2014.01.03_v1.0.tar.gz | Provided with bootstrap, U-boot source code |
| Support writing into DataFlash and NandFlash start | ||
| Support SAM-BA software with usb writing and TFTP network update | ||
| Linux Kernel | Version: 3.6.9 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| Watchdog driver | Provided with test program and source code | |
| Audio, video driver | Provided with test program and source code | |
| Ethernet driver | Provided with test program and source code | |
| Serial port driver | Provided with test program and source code | |
| LCD driver, support 480x272ã€640x480ã€800x480ã€800x600ã€1024x768 resolution | We could provide the debug service for the special LCD screen | |
| Touch panel driver ,support 4-wire resistive touch panel | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| VGA driver | Provided with test program and source code | |
| ADC driver | Provided with test program and source code | |
| CAN driver | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| USB driver, support mouse/ keyboard/ USB Hard Disk/ WIFI/ Camera etc. | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity storage SD card | |
| PWM driver | Provided with test program and source code | |
| File System | rootfs-2014.2.8_v2.1.tar.gz | Provided source code |
| QT routine | QT Development Environment | QT routine and source code |
| PC Development Environment | Provided with ubuntu 12.04, LinuxOS, VMware 9.0.2 virtual machine and supporting development environment build manual | Convenient for user to next develop |
A5D3X SOM Software & Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer（another pay）
• Customized development of back plane, according to customers' requirements(another pay)
Order Information:
| Item | Atmel Cortex A5D3X (IAC-A5D3X-CM) | ||
|---|---|---|---|
| Standard accessories | (1)CD of DVD development (2)packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-arago-linux-gnueabi |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main component's datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of MLO, u-boot, kernel and file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Including bootloader, kernel, file system, QT source code and madplay | ||
| Schematic | Back plane's schematic in PDF format | ||
| PCB Library | PCB library of Eval. board's back plane | ||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
