Atmel 9263 Single Board Computer(QY-9263S)
- ATMEL AT91SAM9263 CPU, 200MHz ARM926EJ-S core, 220MIPS operation performance;
- Have 2D graphics coprocessor, greatly improve display effect;
- Support large capacity NandFlash, hard drives;
- Built-in CAN bus controller;
- TFT-LCD resolution up to 2048*2048, also expand VGA;
- Built-in AC＂97 audio input/output;
- Support SD card, CF card, IDE device;
- Support Windows CE 5.0/6.0, Linux2.6.

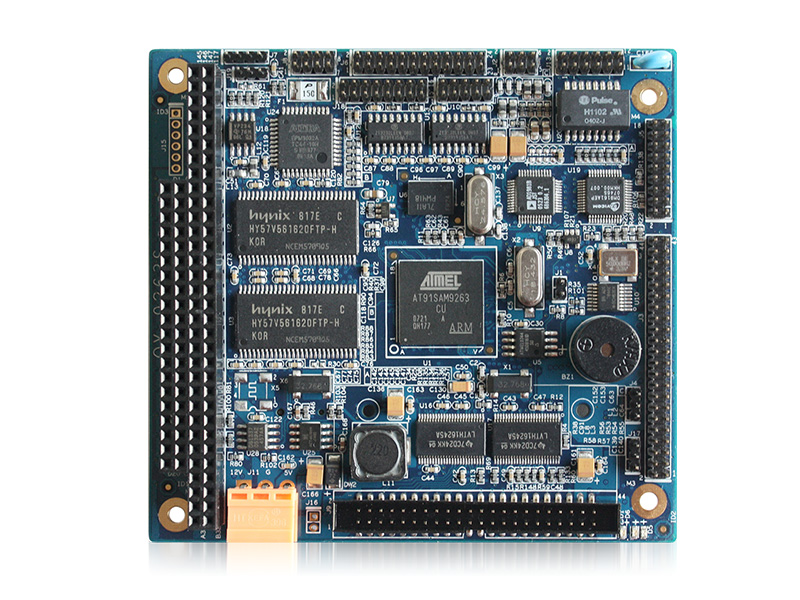

QY-9263S Mainboard is designed by 8-floor PCB; On-board CPU, SDRAM, NandFlash, DataFLash; with commonly used interfaces, such as TFT-LCD, touch screen, network, SPI, PWM, CAN, timer, matrix keypad, IDE, high-speed USB HostDevice, SD card, RS2325 serial port, audio, etc.
MainBoard Specifications:
CPU Processor
• ATMEL AT91SAM9263, ARM926EJ-S core
• DSP expand instructions, JAVA hardware acceleration
• 200MHz
SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM
FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)
• Could change a large capacity or industrial chip according to customer's requirement
PCB Specification & Size
• Using eight floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 96 x 90 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30 + QT2.3
• Windows 5.0, WindowsCE 6.0
Linux Software Features
| Item | Content | Function |
|---|---|---|
| Cross-compiler | arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2 | arm-linux-gcc 4.2 |
| U-boot | Version: U-boot 1.3.4 | Provided with bootstrap, U-boot source code |
| Support writing into DataFlash or NandFlash start | ||
| Support SAM-BA software with USB writing and TFTP network update | ||
| Linux Kernel | Version: 2.6.30 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| CAN driver | Provided with test program and source code | |
| Ethernet driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| LCD driver, supporting 320*240, 640*480, 800*600,1024*768 resolution | Provided with test program and source code | |
| Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| 8*8 matrix keypad driver | Provided with test program and source code | |
| USB driver | Support various USB external devices, provided with debug service | |
| IDE driver | Support various IDE equipment | |
| CF card driver | Support large capacity CF card | |
| SD card driver | Support large capacity SD card storage | |
| File System | Jffs2 file system | Provided with source code |
| PC Development Environment | Provided ubuntu 10.10 development environment and VM7.1.4 virtual machine | Provided with development environment build manual |
WindowsCE 6.0 Software Features
| Item | Content | Function |
|---|---|---|
| Bootloader | support writing into DataFlash or NandFlash start | Optional |
| support user-defined boot logo | Up to 1024*768 resolution 24 bmp image | |
| BSP Source Code | ||
| BSP Open Source | RTC driver,save and restore system time after power off | Provided with test program and source code |
| Registry saving, support saving registry information when electricity adjusted | Convenient for user to debug | |
| LCD driver, support 320*240, 640*480, 800*600, 1024*768 resolution | Provided special LCD with debug service | |
| Touch screen driver, support 4-wire resistive screen | Provided with test program and source code | |
| SD card driver, support 2-wire SD card | Biggest support 4G | |
| Audio driver, support audio input/output and MIC input | Provided with test program and source code | |
| Nic driver, 10/100M self-adaptive, can be expanded gigabit nic | Provided with test program and source code | |
| CF card driver | Support large capacity CF card | |
| IDE driver | Support various IDE equipment | |
| Serial driver | Provided with 232, 485 test program and source code | |
| support 8*8 matrix keypad, also can used as GPIO | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. | According to user's selection, debug driver | |
| PC Development Environment | Wince6.0: Provided with supporting VS.NET 2005 development tools, Wince 6.0 plug-in Wince5.0: Provided with supporting EVC development tools, Wince 5.0 plug-in | Convenient for user to next develop |
QY-9263S Mainboard Software & Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer（another pay）
• Customized development of back plane, according to customers' requirements(another pay)
Order Information:
| Item | ,ARM SBC(QY-9263EK) | ||
|---|---|---|---|
| Standard accessories | (1)5V/2A power supply (2)cross serial line (3) CD of DVD development (4)1-wire RS232 serial line(a trailer four)(5) 1-wire USB download line (6)Network line ⑺USB expansion line(a trailer two) ⑻Audio expansion line ⑼exquisite packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main component's datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Bootstarp, u-boot, kernal, image file of file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Include bootstrap, u-boot, kernel, file system and QT source code | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Firstboot, Eboot, NK image file | ||
| Test source code | Test routines and source codes of all interfaces | ||
| BSP package | Related BSP board-level supporting package | ||
| SDK | Related SDK | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Back plane's schematic in PDF format | ||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | +91 44 4317 1900 / +91 86800 20964 | ||
