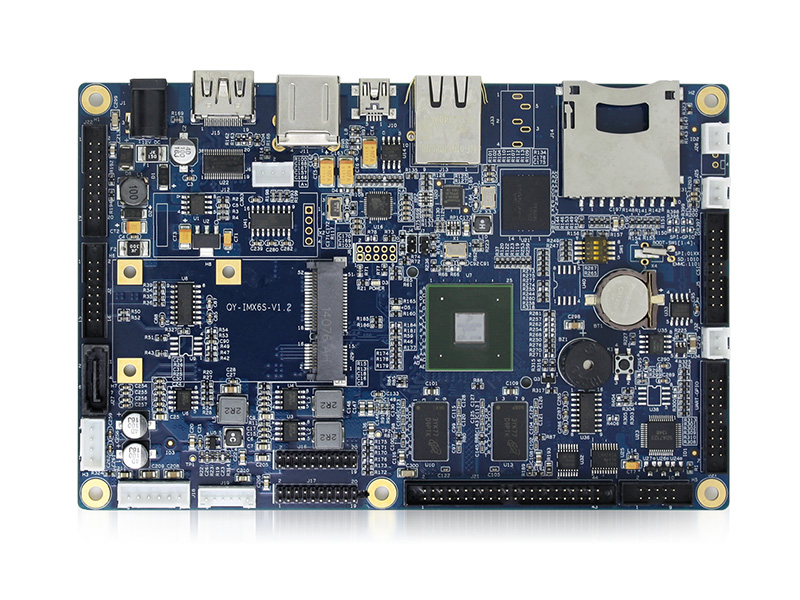

Freescale i.MX6 Single Board Computer(QY-IMX6S)
- ARM® Cortex™-A9 kernal, 1.0GHz,compatible with solo/dual/quad core;
- 2D/3D/VG accelerator ,1080P h.264 video codec,support dual 720P video encoding;
- 1MBL2 cache,32KB instructions and data cache,NEON SIMD media accelerator;
- 1x 20-bit parallel,MIPI-CSI2(4 Channels),3 Channels input camera interface simultaneously;
- High reliable guide, cryptographic engine,random data generator and tamper detection
- 1-ch industrial gigabit Ethernet MAC(10/100/1000MHz);
- 2-ch CAN,each up to 1Mbps,support CAN2.0 protocol;
- Expand 5-ch serial ports,HDMI interface,LVDS interface;
- Support Linux/Android operation system.
Freescale i.MX6 main boad:is designed by 8-layer PCB;expand TFT-LCD,LVD,VGA,network,HDMI,CAN,matrix keypad,SATA,high speed USB HostDevice,SD card,RS2325 serial port,audio,etc
Freescale i.MX6 MainBoard Specifications:
CPU Processor
• Freescale i.MX6 processor,ARM Cortex A9 core, 1.0 GHz,compatible with solo/dual/quad core
• 1MBL2 cache,32KB instructions and data cache,NEON SIMD media accelerator
SDRAM Memory
• DDR3 SDRAM,4*256MB,1GB
FLASH Storage
• 4GB EMMC
Network
• AR8035 net chip adopts RGMII mode,support 10M/100M/1000M adaptative network port
Communication Interfaces
• 5-ch RS232 serial pots(Include:1-ch debug port,2-ch RS232 multiplex with RS485)
• 1-ch USB high speed OTG,4-ch USB HOST(Include:1-ch MIN_PCIE interface)
• 2-ch CAN interfaces,support CAN2.0 protocol(Include:1-ch TTL output,1-ch CAN driver output)
• 1-ch 10/100/1000Mbps industrial ethernet,ACT/LINK indicator.
Display Interfaces
• 18bit TFT-LCD(compatible wiht 16bit/24bit )support 1920x1200 resolution.
• VGA interface,connect to common monitor
• 2-ch LVDS interface,each support 1920x1200 resolution
• HDMI interface,support HDMI 1.4 interface specification
Audio Interfaces
• McASP audio interface,binaural audio output,MIC audio input
Input Interfaces
• 4-wire resistive touch screen interface
• Standard I2C capacitive touchscreen interface
• CAMERA interface,standard interface support OV5642 camera module
Extended Interfaces
• MINI_PCIE 2.0 interface
• SIM card interface
Storage Interfaces
• 1-ch SD card interface
• 1-ch SATA HD interface,SATAII standard,3.0Gbps
Power input
• +12V power supply, support +4.75V~+18V wide range voltage input
PCB Specification & Size
• Using 8-layer of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 160mm x 105mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch order could be customized to -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 12V Dc power supply, low power consumption, <3W
Support OS
• Linux 3.0+QT4.8
• Android 4.2
Linux Software Features
| Item | Content | Function |
|---|---|---|
| Cross-compiler | fsl-linaro-toolchain.tar.gz | arm-linux-gcc |
| U-boot | u-boot-2009.08.tar.gz | Provided with U-boot source code |
| Support USB writing | ||
| Support writing into EMMC starting and USB starting | ||
| Linux Kernel | Version: 3.0.35 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| Ethernet driver | Provided with test program and source code | |
| CAMERA interface driver | Provided with test program and source code | |
| LVDS drive,support 480x272ã€640x480ã€800x480ã€800x600ã€1024x768 resolution | Provided special LCD with debug service | |
| Touch screen drive,support 4-line resistive screen | Provided with test program and source code | |
| VGA display driver | Provided with test program and source code | |
| LVDS display driver | Special LVDS screen an provide test service | |
| HDMI display driver | Provided with source code | |
| CAN driver | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| USB driver,support mouse/keyboard/USB disk/WIFI/Camera,etc. | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity storage SD card | |
| SATA driver | Support SATA HD | |
| File System | rootfs.tar.bz2 | Provided with source code |
| QT routine | QT Development Environment | QT routine and source code |
| PC Development Environment | Provided with ubuntu 12.04, LinuxOS, VMware 9.0.2 virtual machine and supporting development environment build manual | Convenient for user to next develop |
i.MX6 SBC Software & Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer（another pay）
• Customized development of back plane, according to customers' requirements(another pay)
Order Information:
| Item | ARM i.MX6(IAC-IMX6-Kit) | ||
|---|---|---|---|
| Standard accessories | (1)12V/2A power (2)1 cross serial line (3)DVD of development (4）2-wire RS232 serial lines (5)mini USB cable (6)exquisite packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main component's datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of MLO, u-boot, kernel and file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Including bootloader, kernel, file system, QT source code and madplay | ||
| PCB Library | PCB library of Eval. board's back plane | ||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
