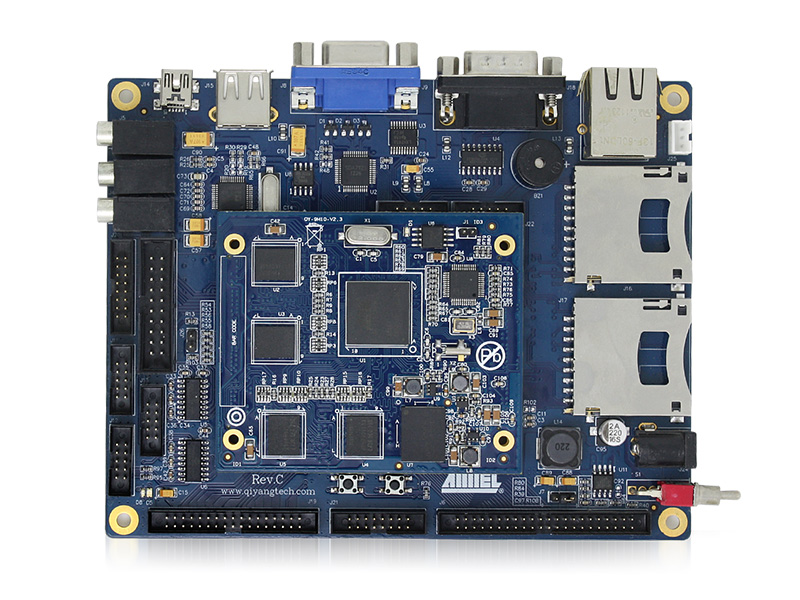

Atmel 9M10 Development Board(QY-9M10EK)
- Atmel SAMA5D3 CPU, 536MHz ARM Cortex-A5 core ARM v7-A ISC
- With floating point arithmetic unit,64-bit inside Bus architecture and 32-bit wide DDR controller,operation frequency up to 166MHz;
- Can choose different type of processor to get different function combination, optimize costs, and all models PIN compatibility;
- Can expand 7-ch port, 2-ch CAN bus, 2-ch Ethernet interface;
- Whole board runs with high-speed, and power consumption is lower than 1 with functions of low power consumption mode,which is ideal for battery-powered applications;
- Abundant external interfaces, can replace Atmel ARM9 series products, and upgrade the product perfect;
- Support linux 3.6 and android 4.0.

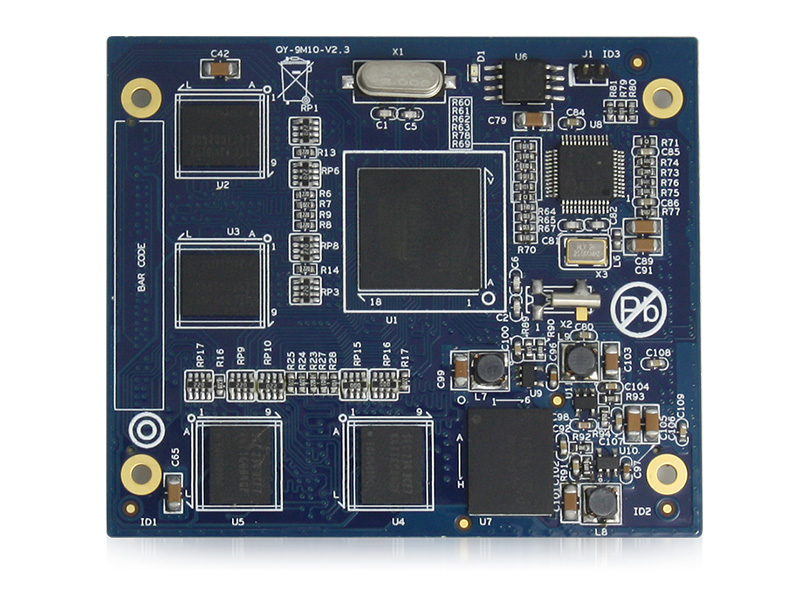

Core Module is designed by 6-floor PCB; the volume is only card size(74*53mm); together with CPU, 128M DDR2 RAM,128M Nand Flash, 512K DataFLash, 10/100Mbps; using 5V dc power supply, low power consumption and high performance power management function, to achieve the necessary CPU core voltage conversion; Industry standard design, through the high temperature resistant B to B (2*100) connector leads to a variety of commonly used interface resources, in order to offer fast and the secondary development of use for those who do not intend to design the CPU plate themselves, and it’s suitable for the batch used by the user.
Core Module Specifications:
CPU Processor
• ATMEL AT91SAM9M10，ARM926EJ-S core
• 400MHz
DDR RAM Memory
• 256MB DDR2 RAM, 133MH ;32bit data bus
FLASH Storage
• On-board 512K DataFlash(DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B) could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2*100 pin 0.8mm spacing B to B(the connectors are 350℃ high temperature-tested and seismic-tested)
Other Resources
• DM9161 net chip, support 10M/100M self-adaptive Ethernet with MII mode, more compatible than RMII
• 1.8V, 3.3V, 5.0V voltage input
PCB Specification & Size
• Using 6-layers of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30 + QT2.3 / QT4
• WindowsCE 6.0
Linux Software Features
| Item | Content | Function |
|---|---|---|
| Cross-compiler | arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2 | arm-linux-gcc 4.2 |
| U-boot | Version: U-boot 1.3.4 | Provided with bootstrap, U-boot source code |
| Support writing into DataFlash or NandFlash start | ||
| Support SAM-BA software with USB writing and TFTP network update | ||
| Linux Kernel | Version: 2.6.30 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| EBI driver | Provided with test program and source code | |
| I2C driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| LCD driver, supporting 320*240, 640*480, 800*600,1024*768 resolution | Provided special LCD with debug service | |
| Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| PWM driver | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| 8*8 matrix keypad driver | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity SD card storage | |
| File System | Jffs2 file system | Provided source code |
| QT Routine | QT development environment | QT routine |
| PC Development Environment | Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual | Convenient for user to next develop |
WindowsCE 6.0 Software Features
| Item | Content | Function |
|---|---|---|
| Bootloader | support writing into DataFlash or NandFlash start | Optional |
| support user-defined boot logo | Up to 1024*768 resolution 24 bmp image | |
| BSP Source Code | ||
| BSP Open Source | RTC driver,save and restore system time after power off | Provided with test program and source code |
| Registry saving, support saving registry information when electricity adjusted | Convenient for user to debug | |
| LCD driver, support 320*240, 640*480, 800*600, 1024*768 resolution | Provided special LCD with debug service | |
| Touch screen driver, support 4-wire resistive screen | Provided with test program and source code | |
| SD card driver, support 2-wire SD card | Largest capacity support 4G | |
| Audio driver, support audio input/output and MIC input | Provided with test program and source code | |
| Nic driver, 10/100M self-adaptive, can be expanded gigabit nic | Provided with test program and source code | |
| PWM driver | Provided with test program and source code | |
| I2C driver | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| 232, 485 serial driver test | Provided with test program and source code | |
| support 8*8 matrix keypad, also can used as GPIO | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| PC Development Environment | Provided with supporting VS.NET 2005 development tools, Wince 6.0 plug-in | Convenient for user to next develop |
QY-9M10P Evaluation Board Software & Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer（another pay）
• Customized development of back plane, according to customers' requirements(another pay)
Order Information:
| Item | QY-9M10P | ||
|---|---|---|---|
| Standard Accessories | (1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)4-wire RS232 serial lines （5）miniUSB wire (6)packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main component's datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Bootstarp, u-boot, kernal, image file of file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Include bootstrap, u-boot, kernel, file system and QT source code | ||
| Packaging library | Component packaging library of evaluation board | ||
| Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Firstboot, Eboot, NK image file | ||
| Test source code | Test routines and source codes of all interfaces | ||
| BSP package | Related BSP board-level supporting package | ||
| SDK | Related SDK | ||
| Packaging library | Component packaging library of evaluation board | ||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | +91 44 4317 1900 / +91 86800 20964 | ||
