TI AM335X Development Board(EZ335X-EVB)
- TI AM335X CPU, 720MHz high-speed ARM Cortex-A8 core;
- 256MB DDR2 SDRAM;
- 128MB NandFlash 2MB DataFlash;
- 2-wire 10M/100M/1000M Ethernet port;
- 5V power supply, using TI own MPU management chip, to output all the voltage of core module needed;
- Back plane with independent RTC, work precisely;
- Low power consumption: single-board is less than 2W;
- LCD Performance: 2048x2048, support VGA output,with 3D graphics coprocessor;
- Support Windows Embedded Compact 7/Linux 3.2/Android 4.

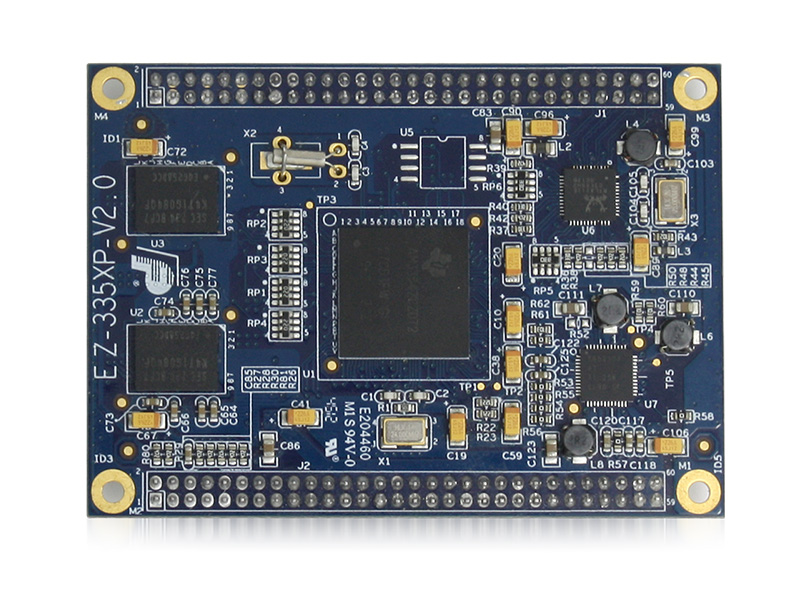

Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2*60 Pin 2.0 connectors lead various commonly used interfaces; all AM335x-ARM Cortex-A8 processor is compatible; user can choose different types of processor chip according to need to reduce the cost, and this choice only suitable for batch users.
Attention: EZ335X-EVB EK has the standard AM3354 processor, in order to reduce the cost, the rest of the types are pin compatible, only for the batch user.
Core Module Specifications:
CPU Processor
• TI AM335X, ARM Cortex-A8 core
• 720MHz
DDR RAM Memory
• 256MB DDR2 RAM, 133MHz, 16bit data bus(The batch can be extended to maximum 512MB)
FLASH Storage
• On-board 512K Dataflash (DB45041D)
• On-board 256M*8bits NandFlash (K9F1G08U0B) could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2*60 pin 2.0mm spacing B to B
Other Onboard Resources
• RTL8211Enet chip, support 10M/100M/1000M Ethernet with RGMII mode
• Power management, single 5V input and output all voltage core module need
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5v Dc power supply, low power consumption, <1W
Support OS
• Linux3.2.0 + QT4
• Windows Embedded Compact 7
• Android 4
Linux Software Features
| Item | Content | Function |
|---|---|---|
| Cross-compiler | arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2 | arm-linux-gcc 4.3.2 |
| U-boot | Version: U-boot 1.3.4 | Provided with bootstrap, U-boot source code |
| Support writing into DataFlash and NandFlash start | ||
| Support SAM-BA software with usb writing and TFTP network update | ||
| Linux Kernel | Version: 3.2.0 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| CAN driver | Provided with test program and source code | |
| Ethernet driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| LCD driver, supporting 640×480, 800×600, 1024×768, 1280x800 resolution | Provided special LCD with debug service | |
| Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| ADC driver | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity storage SD card | |
| File System | Jffs2 file system | Provided with source code |
| QT Routine | QT development environment | QT routine |
| PC Development Environment | Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual | Convenient for user to next develop |
EZ335X-EVB Evaluation Board Software & Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer（another pay）
• Customized development of back plane, according to customers' requirements(another pay)
Order Information:
| Item | EZ335X-P Cortex-A8 EK | ||
|---|---|---|---|
| Standard accessories | (1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)5-wire RS232 serial lines (5)packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main component's datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of bootstarp, u-boot, kernel and file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Including bootstrap, u-boot, kernel, file system and QT source code | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Firstboot, Eboot, NK image file | ||
| Test source code | Test routines and source codes of all interfaces | ||
| BSP package | Related BSP board-level supporting package | ||
| SDK | Related SDK | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | +91 44 4317 1900 / +91 86800 20964 | ||
