TI AM335X Development Board (IAC-335X-Kit)


    • TI AM335X series CPU, 720MHz ARM Cortex-A8 core;
    • Pinpointing Industrial control area, low consumption、low cost、high integration density、core module+ customized baseboard application;
    • Provide pin reuse chart;
    • Provide all resources of backplane(PCB file);
    • Bulk order: DDR2(max): 512MB, Nandflash(max): 64Gb, to ensure smooth operation and storage space;
    • Industrial interfaces: 2* Gigabit Ethernet, RS232/485, 2*CAN bus, GPMC bus, etc;
    • All core module devices can be upgrade to industrial grade; high-end B to B connector; suitable for various field environment.;
    • OS Support Linux3.2, Android4.0.3.

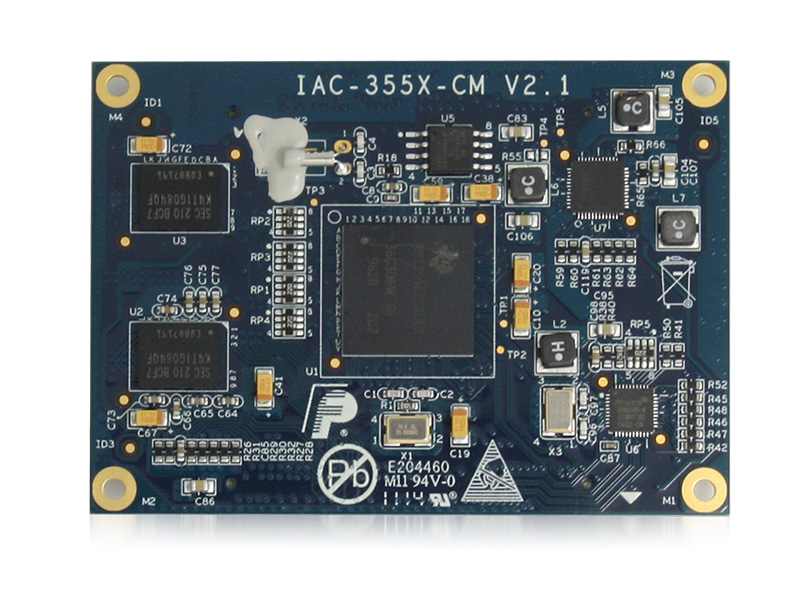

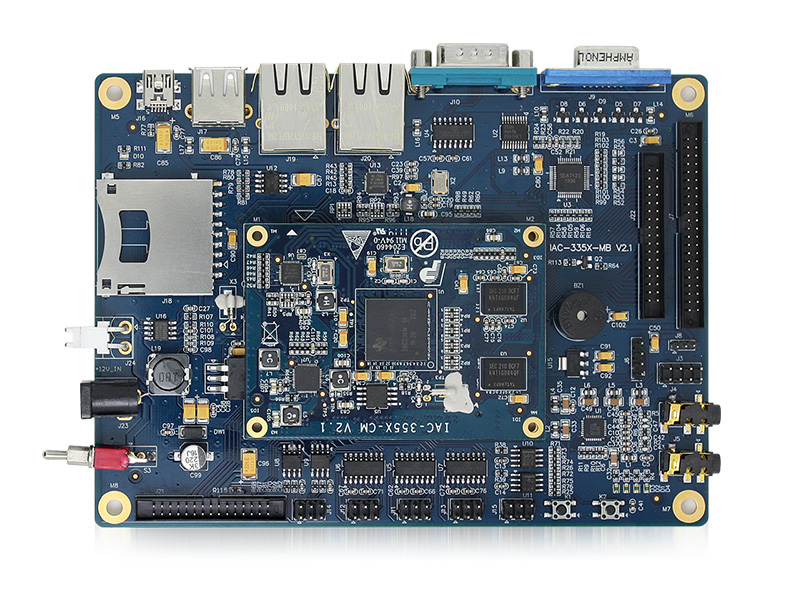

Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors lead various commonly used interfaces; The core module is compatible with all AM335x-ARM Cortex-A8 series processors, and the users can choose different types of appropriate processor chip to reduce cost(only for bulk users).

Note: the AM3354 is the standard processor of IAC-335-X-Kit, which is to reduce the users' costs, and the rest of the models are compatible spell foot, only for bulk users!

Core Module(IAC-335X-CM)Specifications:

CPU Processor

• TI AM335X, ARM Cortex-A8 core
• 720MHz

DDR RAM Memory

• 256MB DDR2 RAM, 133MHz, 16bit data bus(The batch can be extended to maximum 512MB)

FLASH Storage

• On-board 2MB Dataflash
• On-board 256M*8bits NandFlash could change a large capacity or industrial chip according to customer's requirement(The batch can be extended to maximum 64G)

Interfaces

• 2*100 B to B connectors

Other Onboard Resources

• AR8035 net chip, support 10M/100M/1000M Ethernet with RGMII mode
• Power management, single 5V input and output voltage of all core module

PCB Specification & Size

• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters

• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption

• 5V Dc power supply, low power consumption, <2W

Support OS

• Linux3.2.0 + QT4
• Android 4.0.3



Linux Software Features

Item Content Function
Cross-compiler arm-arago-linux-gnueabi.tar.gz TI official offer
U-boot Version: U-boot 1.3.4 Provided with U-boot source code
Support writing into DataFlash and NandFlash start
Support the serial writing, SD card, and TFTP network update
Linux Kernel Version: 3.2.0
RTC driver, save and restore system time after power off Provided with test program and source code
CAN bus driver Provided with test program and source code
Nic driver Provided with test program and source code
Audio driver Provided with test program and source code
LCD driver, supporting 640×480, 800×600, 1024×768, 1280x800 resolution Provided special LCD with debug service
Touch screen driver, supporting 4-wire resistive screen Provided with test program and source code
Serial driver Provided with test program and source code
ADC driver Provided with test program and source code
USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. Support various USB external devices, provided with debug service
SD card driver Support large capacity storage SD card
UBI File System File system Provided with source code
QT Routine QT development environment QT routine
PC Development Environment Provided with ubuntu 12.04, LinuxOS, VMware 9.0.2 virtual machine and supporting development environment build manual Convenient for user to next develop

IAC-335X-CM Core Module Software & Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customers' requirements(another pay)

Order Information:

Item IAC-335X-CM Cortex-A8 Core Module
DVD resources Linux Compilers Cross-compiler arm-arago-linux-gnueabi
Tool software Supporting terminal, writing, download tools
Device manual Main component's datasheet of back plane
User manual About all development and use
Image file Image file of MLO, u-boot, kernel and file system
Test source code Test routines and source codes of all interfaces
System source code Including bootloader, kernel,  file system, QT source code and madplay
Windows CE Tool software Supporting terminal, writing, download tools, sync software
Device manual Main components' datasheet of back plane
User manual About all development and use
Image file Image file of MLO, u-boot, kernel and file system
Source code Including u-boot, kernel and file system
Module options(another pay) TTL to LVDS module
TTL to VGA module
