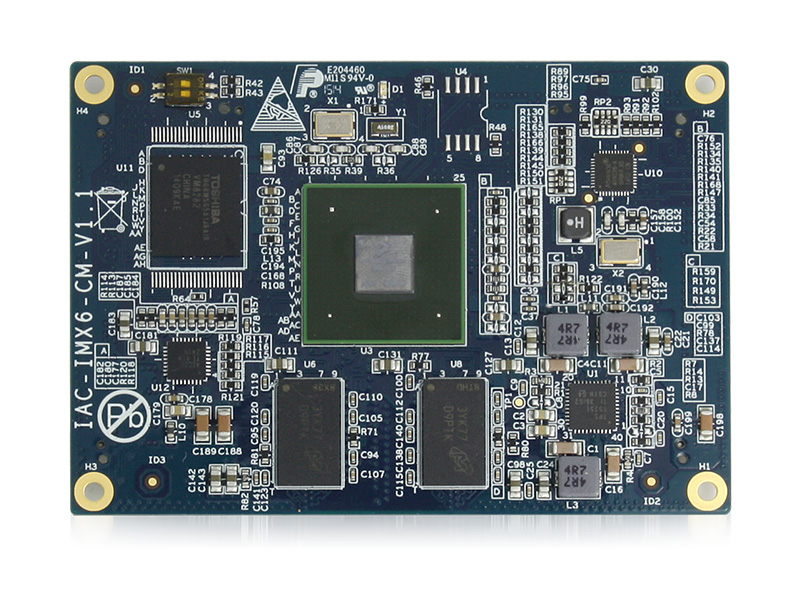

Freescale i.MX6 ARM SOM(IAC-IMX6-CM)
Developer
- ARM® Cortex™-A9 kernal,1.2GHz,compatible solo/dual/quad core;
- 2D/3D/VG coprocessor,1080P h.264 video codec,supporting dual 720P video encoding;
- 1MBL2 cache,32KB instructions and data cache,NEON SIMD media accelerator;
- 1x 20-bit parallel,MIPI-CSI2(4 lanes),support 3 simultaneous inputing camera interfaces;
- High Assurance Boot,cryptographic cipher engines,random number generator and temper detection;
- 1-ch industrial gigabit ethernet MAC(10/100/1000MHz);
- 2-ch CAN,each ..1Mbps,support CAN2.0 protocol;
- Expand 3-ch serial ports,HDMI interface,LVDS display interface;
- Support Linux/Android embedded operating system.
Freescale i.MX6 SOM:is designed by 8-layer PCB; card size;integrated with CPU,DDR3 RAM,Flash,network;5V DC power supply,low power consumption;B to B (3 x 100 )connectors boot various commonly used interfaces;The users can choose different types of appropriate processor chip to reduce cost(only for bulk users).
Freescale i.MX6 core board Specifications:
CPU Processor
• Freescale i.MX6 processor,ARM Cortex A9 core
• 1.0GHz,compatible with solo/dual/quad core
DDR RAM Memory
• DDR3 SDRAM,4*256MB,1GB
FLASH Storage
• 4GB EMMC
Interface Resources
• 3*100 pin 0.8mm spacing B to B (the connectors are 350℃ high temperature-tested and seismic-tested)
Other On-board Resources
• AR8035 network on chip,support 10M/100M Ethernet with MII mode, more compatible than RMII
• Power management,support 1.8V/3.3V/5.0V voltage input
PCB Specification & Size
• Using 8-layer PCB high precision process, with the best electrical properties and anti-jamming performance
• 86 x 60x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch order could be customized to -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <1W
Support OS
• Linux 3.0+QT4.8
• Android 4.2
Linux Software Features
| Item | Content | Function |
|---|---|---|
| Cross-compiler | fsl-linaro-toolchain.tar.gz | arm-linux-gcc |
| U-boot | u-boot-2009.08.tar.gz | Provided with U-boot source code |
| Support USB writing | ||
| Support writing into EMMC starting and USB starting | ||
| Linux Kernel | Version: 3.0.35 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| Ethernet driver | Provided with test program and source code | |
| CSI interface driver | Provided with test program and source code | |
| LVDS display interface | Special LVDS screen can provide test service | |
| HDMI display drive | Provided with test program and source code | |
| CAN driver | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| USB driver,support mouse/keyboard/USB disk/WIFI/Camera,etc. | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity storage SD card | |
| SATA driver | Support SATA HD | |
| File System | rootfs.tar.bz2 | Provided with source code |
| QT routine | QT Development Environment | QT routine and source code |
| PC Development Environment | Provided with ubuntu 12.04, LinuxOS, VMware 9.0.2 virtual machine and supporting development environment build manual | Convenient for user to next develop |
i.MX6 Core Module Software & Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer（another pay）
• Customized development of back plane, according to customers' requirements(another pay)
Order Information:
| Item | i.MX6(IAC-IMX6-CM) | ||
|---|---|---|---|
| Standard accessories | (1)CD of DVD development (2)packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-arago-linux-gcc |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main component's datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Bootstrap, u-boot,kernal, image file of file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Including bootstrap, u-boot,kernel, file system and QT source code | ||
| schematic | Back plane'schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | +91 44 4317 1900 / +91 86800 20964 | ||
